| Brand Name: | PFM |
| Model Number: | PFM-Lis |
| MOQ: | 1 square meter |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, T/T, Western Union, ， |
| Supply Ability: | 3000meters per week |

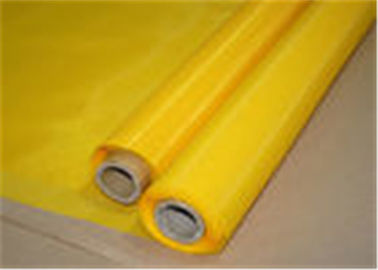

300Mesh Polyester Printing Mesh With High Tension For Ceramics Printing
1. Description

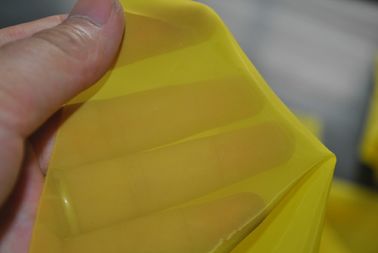

White polyester printing mesh is more economical of the two, and is primarily seen in lower mesh counts used for less-detailed designs. Higher count mesh is usually dyed yellow because the color yellow acts as a canceling factor for UV light and prevents refraction along the mesh strands when burning your screens. This allows for a more focused and precise exposure, keeping your screens as crisp as possible.
2. Application
1.Can be used for screen printing plate making process, widely used in printing, membrane switch, circuit boards, plastic, metal, glass and other products of the screen printing plate.
2.Can be used for industrial filtration.
3. Specification
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
| 30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
| 30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
| 40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
| 150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
4. Feature advantage
.
