White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean

Brand Name:	PFM
Model Number:	PFM-LIS
MOQ:	1 meter
Price:	Negotiable
Payment Terms:	L/C, D/A, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability:	3000meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei China

Certification:

FDA

Material:

Monofilament Polyester

Thread Diameter:

40-550micron

Mesh:

13-500mesh/inch

Length:

Accord To Your Request

Color:

Yellow

Model:

DPP5-DPP200

Packaging Details:

Plastic bag inside on one roll and plywood case outside,or cut into small pieces and plastic bag.

Highlight:

polyester mesh fabric

polyester mesh screen

Product Description

White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean

1. Description of polyester printing mesh

Products using high-quality polyester filament as raw material, the use of Switzerland Sulzer film shuttle production monofilament silk screen mesh, high precision products, good stability, complete specifications, affordable.

2. Application

Widely used in PCB, electronics, plastics, metal, paper, textiles and other industries and materials.

3. Specification

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPEPING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TEN SION(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
20	8	300	950	58	550	319	30-60
25	10	250	750	56	620	347	30-60
30	12	250	583	49	450	220	30-60
30	12	150	683	67	300	201	30-60
40	16	200	425	46	400	184	30-60
50	20	80	420	71	120	85	35-37
50	20	150	350	49	260	127	30-60
60	24	100	316	58	136	78	35-40
60	24	120	297	50	240	120	35-60
73	29	120	225	43	240	103	35-60
80	32	64	248	63	95	59	30-34
80	32	100	212	46	200	92	35-40
85	34	100	195	44	221	97	35-40
90	36	100	178	41	216	88	35-40
100	39	55	200	61	88	53	25-30
100	39	80	176	47	150	70	35-37
110	43	80	153	43	130	56	35-37
120	47	55	158	55	88	48	25-30
120	47	71	142	44	135	59	30-34
135	53	55	133	50	86	43	25-30
135	53	64	125	44	100	44	26-31
150	59	64	105	38	100	38	26-31
160	64	55	101	42	98	41	25-30
160	64	64	92	35	120	42	30-34
180	72	48	91	43	78	66	27-29
180	72	55	84	37	100	37	25-30
200	80	48	77	38	74	28	27-29
195	77	55	75	33	105	34	25-30
230	90	48	63	33	85	28	27-29
250	100	40	60	36	70	25	20-24
280	110	40	51	31	85	26	20-24
305	120	40	43	27	68	18	20-24
355	140	34	37	27	58	15	22-24
380	150	31	36	29	46	13	21-23
420	165	31	30	24	46	11	21-23
460	180	27	28	26	56	14	20-22

4. Features of polyester printing mesh

Flat and evenly surface,accurately mesh
high tension,Screen printing process under the ink is good
Polyester material,non-toxic and odorless
Good anti-wrinkle,good elasticity,stable under tension, not easy to deform, resistant to sunlight and abrasion.
Stored without mildew, good electrical insulation, good chemical resistance, resistance to weak acid and alkali, resistant to dilute acid at room temperature, intolerant alkali.

White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean 0

White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean 1

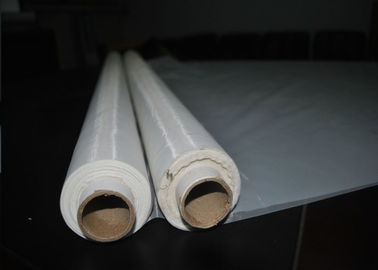

White Color Monofilament Polyester Mesh For Screen Printing , Easy To Clean 2
