| Brand Name: | COMESH |
| Model Number: | COHE250410 |
| MOQ: | 10 meter |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 meter per month |

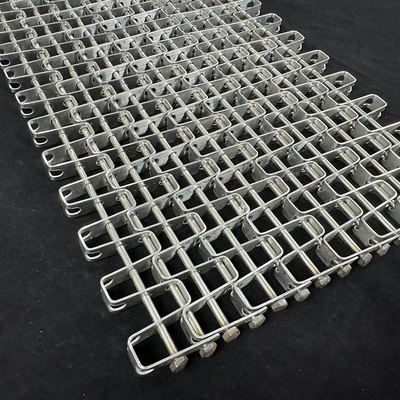

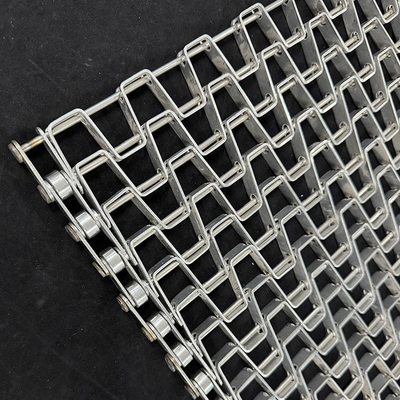

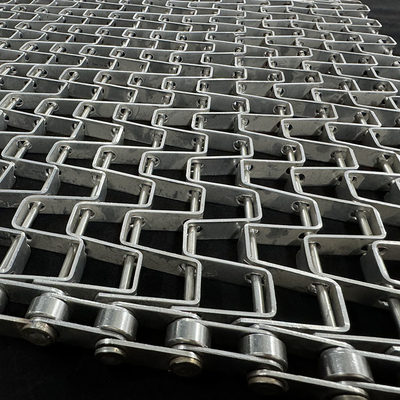

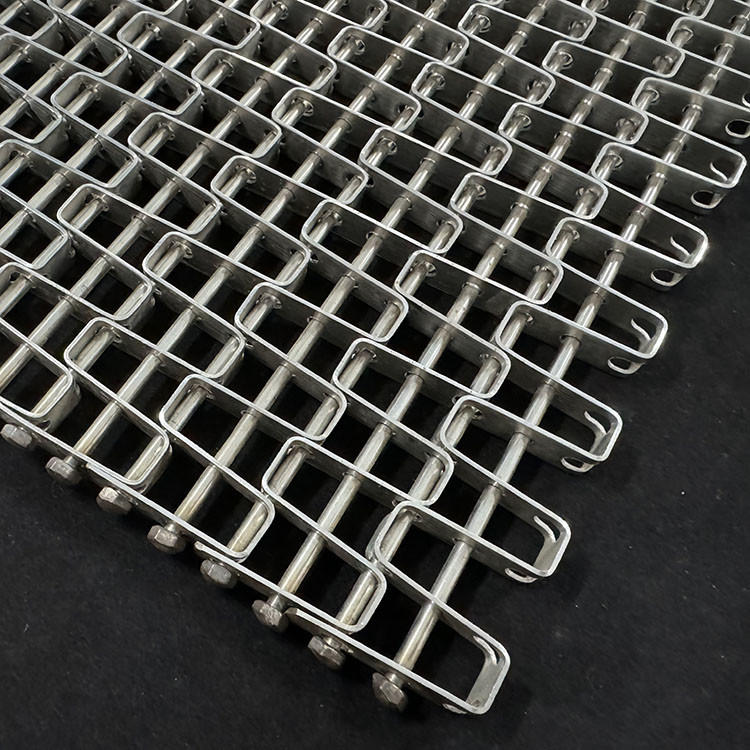

304 316 Stainless Steel Honeycomb Mesh Conveyor Belt for food industry
Description of Honeycomb Conveyor Belt
Honeycomb Flat wire belt is made from cross rod and flat strip with weled adge,some with kunckled edge.side guard and flight is available,material includes carbon steel,SS304 and SS316 .Usually used for cooling,drying,bread production,washing ,sorting system etc.
when selecting a flatwire belt, please consider the product size and the weight of the load , standard duty is sufficient for most applications , whereas heavy duty provides extra long life, heavy load capacity and for tougher conditions
|
Material:
|
Stainless steel 304, 201, 316, 314, carbon steel, etc
|
|
Spiral pitch:
|
15-30mm
|
|
Pitch:
|
12.7-76.2mm
|
|
Rod diameter
|
2-12mm
|
|
Plate thickness:
|
0.8-3mm
|
|
overall width:
|
100-6000mm
|
|
Plate width:
|
8-25mm
|
|
Special specifications are available.
|
|
Features of Honeycomb Belt:
Honeycomb conveyor belts provide an open mesh for easy drainage and flow of air ,gases or liquids through the belt and around the product. This enables easy belt cleanable ,endless splicing , positive sprocket drive easily cleanable ,endless splicing ,positive sprocket drive , easy to replace a section that is damaged or worn down .open for drainage and air circulation.
Applciation of Honeycomb Mesh Chain:
food processing canning ,baking , freezing , agricultural applications farming ,harversting , as well as parts washing ,drying cleaning ,painting , drying ,transferring ,also used as matting and drag mats .
