| Brand Name: | Comesh |
| Model Number: | CAR0028 |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000pcs per 30 days |

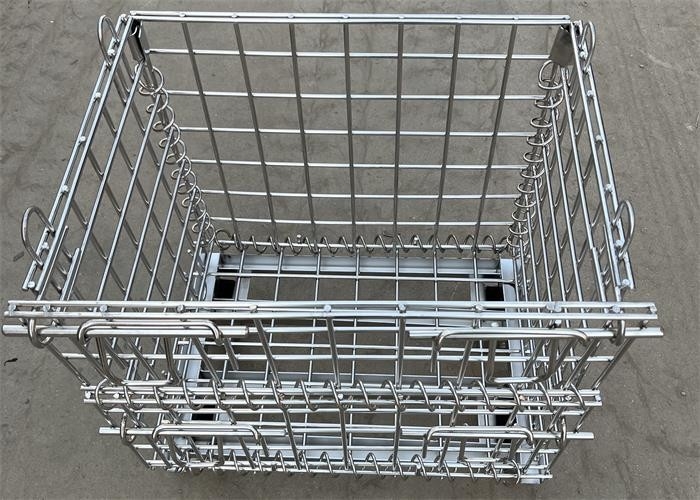

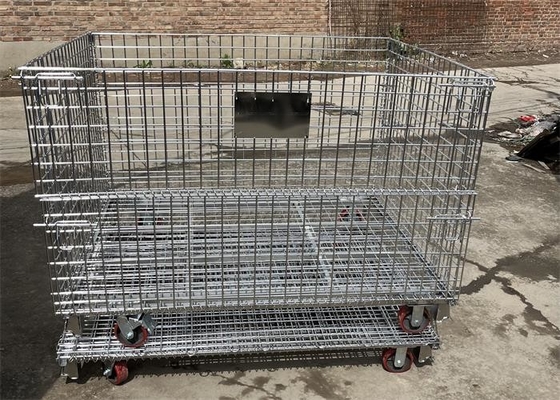

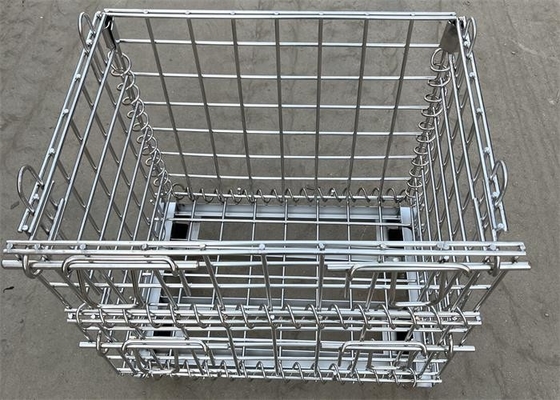

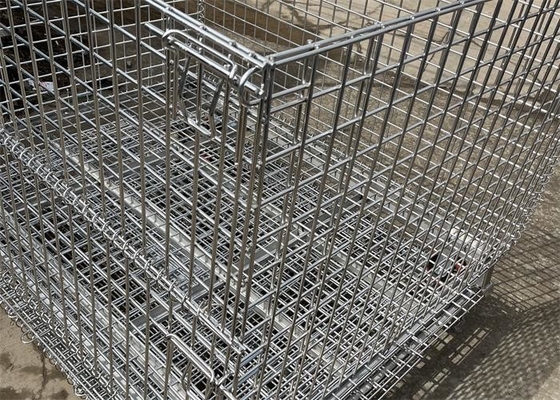

Stackable Stainless Steel , Galvanized Steel Welded Wire Mesh Folding Container Storage Cage
Description:
Our foldable rigid containers are most popularly used in the building industry and automotive industry. The stacking posts are ideal for storing and shipping product when stacked. They are built to withstand years and years of heavy abuse. The foldable rigid containers are made of tubular steel corner posts or steel angle corner posts. Comparing with the wire container, the stronger posts are great help in stability and safety when stacking high with heavy loading. They can be designed to handle 2000KG capacity while stacked 4 high. We have standard models but we are able to make custom sizes and capacities if needed.
Feature:
1. The ideal logistics products, combine strength, flexibility and maneuverability.
2. Folded, allows it to be widely used in logistics.
3. One side half open gate is available.
4. Long lasting,economical alternative to disposable packing.
Specification:
| Model No. |
Outside Dimension (mm) |
Inside Dimension (mm) |
Wire Dia. (mm) |
Mesh Pattern (mm) |
Load Capacity (kg) |
| LX-MC01 | 800*600*640 | 750*570*500 | 5.6 | 50*50 | 600 |
| LX-MC02 | 800*600*640 | 750*570*500 | 4.8 | 50*50 | 400 |
| LX-MC03 | 1000*800*840 | 950*770*700 | 6.2 | 50*50 | 1800 |
| LX-MC04 | 1000*800*840 | 950*770*700 | 6.0 | 50*50 | 1500 |
| LX-MC05 | 1000*800*840 | 950*770*700 | 5.8 | 50*50 | 1200 |
| LX-MC06 | 1000*800*840 | 950*770*700 | 5.6 | 50*50 | 1000 |
| LX-MC07 | 1000*800*840 | 950*770*700 | 5.6 | 50*100 | 800 |
| LX-MC08 | 1000*800*840 | 950*770*700 | 4.8 | 50*50 | 600 |
| LX-MC09 | 1000*800*840 | 950*770*700 | 4.8 | 50*100 | 400 |
| LX-MC10 | 1000*800*500 | 950*770*360 | 6.0 | 50*50 | 1000 |
| LX-MC11 | 1200*1000*890 | 1150*970*740 | 5.8 | 50*50 | 1500 |
| LX-MC12 | 1200*1000*890 | 1150*970*740 | 5.6 | 50*50 | 1200 |
| LX-MC13 | 1200*1000*890 | 1150*970*740 | 5.6 | 50*100 | 1000 |
| LX-MC14 | 1200*1000*890 | 1150*970*740 | 4.8 | 50*50 | 600 |
| LX-MC15 | 1200*1000*890 | 1150*970*740 | 4.8 | 50*100 | 400 |
| LX-MC16 | 1200*800*840 | 1150*770*700 | 5.8 | 50*100 | 1000 |
| LX-MC17 | 800*500*540 | 750*470*400 | 4.5 | 25*25 | 800 |
| LX-MC18 | 800*500*540 | 750*470*400 | 4.5 | 50*50 | 400 |
