| Brand Name: | PFM |
| Model Number: | PFM-Hel |
| MOQ: | 5 square meter |
| Price: | negotiable |
| Payment Terms: | T/T, L/C, Western Union, |
| Supply Ability: | 2000 square meter per month |

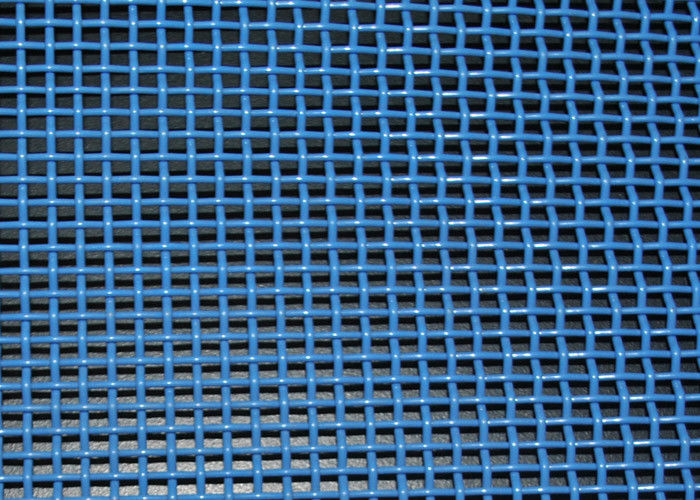

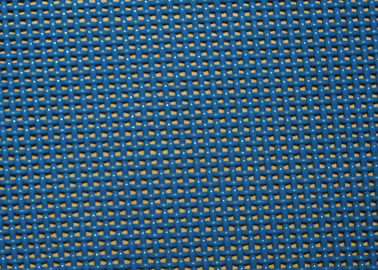

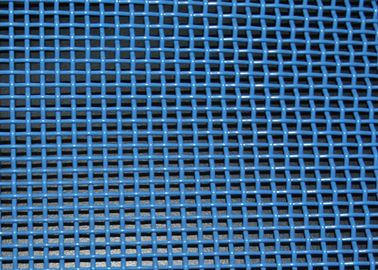

031002 Polyester Mesh Belt Screen Fabric for Coal Mine Sieving
Tech Datas of Polyester Mesh Belt Screen Fabric
| Polyester Mesh Belt Dryer Screen | |||||||
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Srength | Air Permeability | ||
| (mm) | (N/cm) | (m3/m2h) | |||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving fabric | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
| 20403 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 | |
Features of polyester monofialement Screen fabric Mesh Belt:
Application of polyester monofialement Screen Mesh:
100% polyester monofialement Screen fabric Mesh Belt is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.
Polyester Dryer Mesh Screen is also used for tailings disposal,colliery,food and medicine.
Application of Polyester Mesh Belt Dryer Screen:
Polyester Mesh Belt Dryer Screen is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.
Discription of Polyester Dryer Mesh Screen is also used for tailings disposal,colliery,food and medicine:
1. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.
2. the width of polyester dryer screen mesh is usually 1 meter - 6 meter,the length is available as per requirement
3. edge treatment:the edge of polyester mesh dryer belt can be sealed with glue and cavans
To make sure extra belt durability,polyester Dryer Screen mesh edge treated with glue and cavans.
4. the joining type of 05802 polyester mesh Dryer belt can be endless,steel pin joining,spiral ring joining and pin ring joining.
Endless Seam make sure the seaming points has the same airpermeabilty and strength with the whole belt
Steel pin,pin ring and spiral ring seam are designed for easy and rapid installation.
Texo weaving machine imported from sweden.
Heat shaping processing is very important to the quality of polyester plain weave mesh screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.
Advanced programming software completes the controlling,
Packing and shipping:
Polyester Dryer Screen Weave Belt can be shiped by courier,by air and by sea.
Usually we pack polyester dryer screen Mesh with air bubble film,if ship by sea, it will be packed with plywood case.
